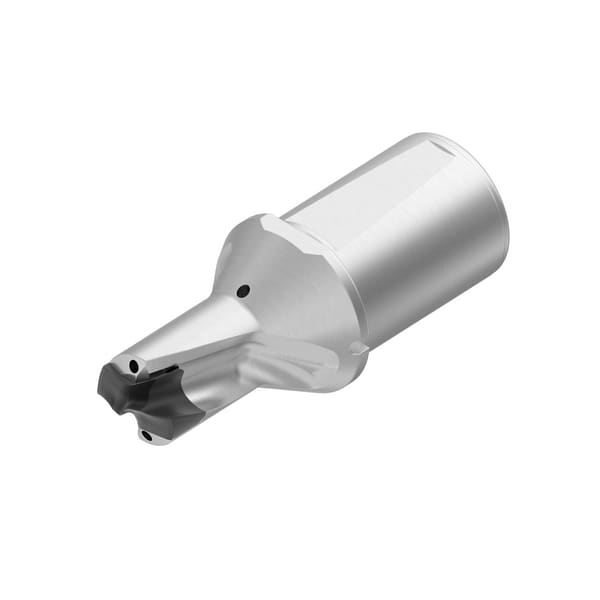

KSEM361R1WD50M
Produktnummer: 1592464
Salgsenhet: STK
inkl. mva.
KSEM361R1WD50M
KSEM-GRUNDKOERPER 1XD D=36.01MM
| [D] Shank Diameter | 50.0000 |
| Kennametal | |
|---|---|
| ISO Catalog Number | KSEM361R1WD50M |
| [D1MAX] Drill Dia Max Metric | 40 |
| [L1] Gage Length | 87 |
| [SSC] Insert/Blade Seat Size | 10 |
| [L] Overall Length | 155 |
| [D] Adapter Shank Bore Dia | 50 |
| [D1] Drill Diameter Min | 36.01 |
| [L4] Max. Drill Depth | 40 |
| [L5] Drill Point Length | 5.54 |
| [LS] Shank Length | 68 |
| Spesifikasjoner | |
|---|---|
| Vekt | 1.6 kg |
| Volum | 0.2 liter |
| Type | KROPP |
| Bordiameter | 36.01 mm |
| Bortype | KSEM |
| Borelengde | 1XD |
