UADE0500A4BVKCPM15
Produktnummer: 6130874
EAN: 4056544506788
Salgsenhet: STK
inkl. mva.
UADE0500A4BVKCPM15

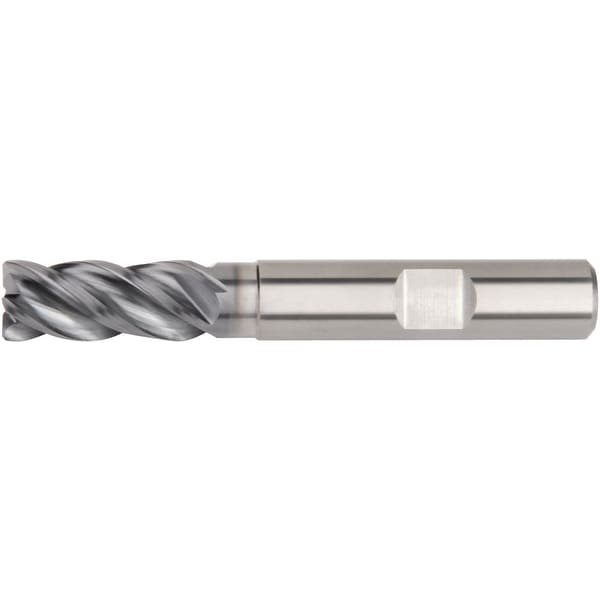

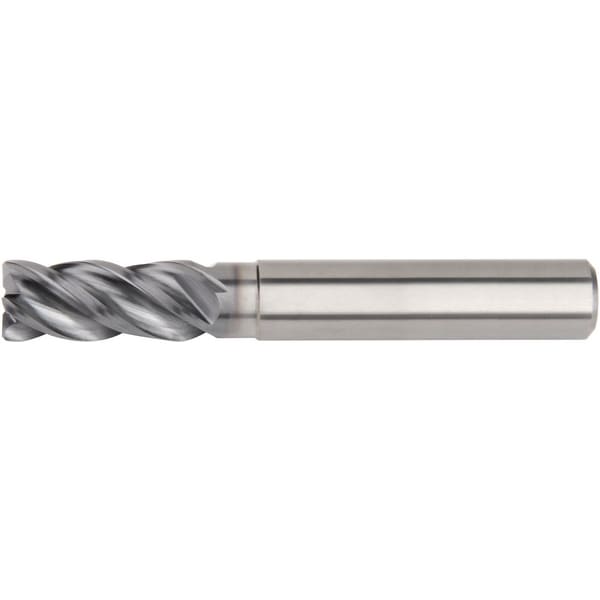

HARVI I ENDMILL NECKED D=5 Z=4 38DEG
| Spesifikasjoner | |
|---|---|
| Vekt | 0.023 kg |
| Volum | 0.02 liter |
| Form | FAS |
| Tanning | 4 |
| Type | STANDARD FRES |
| Lengde X dia | 3XD |
| Serie | HARVI I |
| Kvalitet | KCPM15 |
| Diameter | 5 mm |
| Arbeidsmateriale | Stål, Rustfritt stål, Støpejern, Herdet stål |
| Lengde | 13 mm |
| [D] Shank Diameter | 6.0000 |
| Kennametal | |
|---|---|
| ISO Catalog Number | UADE0500A4BV |
| Grade | KCPM15 |
| [D3] Neck Diameter | 4.7 |
| Number of Flutes | 4 |
| Adapter Style Machine Side | Straight-Cylindrical |
| [L3] Maximum Depth End Mill | 18 |
| [L] Overall Length | 57 |
| [D1] Effective Cutting Dia | 5 |
| [D] Adapter Shank Bore Dia | 6 |
| [BCH] Corner Chamfer Width | 0.4 |
| [AP1MAX] 1st Max Cut Depth | 13 |
