KSEM400R3WD50M
Produktnummer: 1749610
Salgsenhet: STK
inkl. mva.

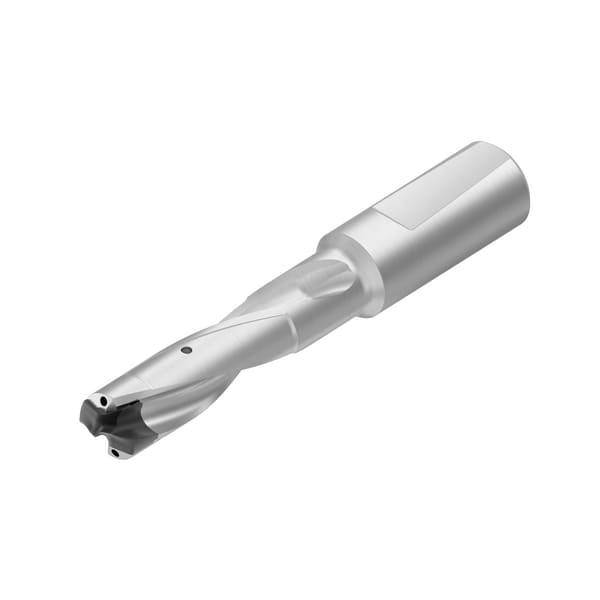

KSEM400R3WD50M
KSEM-GRUNDKOERPER 3XD D=40.0MM
| [D] Shank Diameter | 50.0000 |
| Kennametal | |
|---|---|
| ISO Catalog Number | KSEM400R3WD50M |
| [D1MAX] Drill Dia Max Metric | 40 |
| [L1] Gage Length | 182 |
| [L4/D1] Length/Diameter Ratio | 3 |
| [SSC] Insert/Blade Seat Size | 10 |
| [L] Overall Length | 250 |
| [D] Adapter Shank Bore Dia | 50 |
| [D1] Drill Diameter Min | 40 |
| [L3] Flute Length | 171 |
| [L4] Max. Drill Depth | 120 |
| [L5] Drill Point Length | 6.15 |
| [LS] Shank Length | 68 |
| Spesifikasjoner | |
|---|---|
| Vekt | 2.37 kg |
| Volum | 0.5 liter |
| Type | KROPP |
| Bordiameter | 40 mm |
| Bortype | KSEM |
| Borelengde | 3XD |
