KSEM321R5WD40M
Produktnummer: 6123744
EAN: 4056544456830
Salgsenhet: STK
inkl. mva.
KSEM321R5WD40M

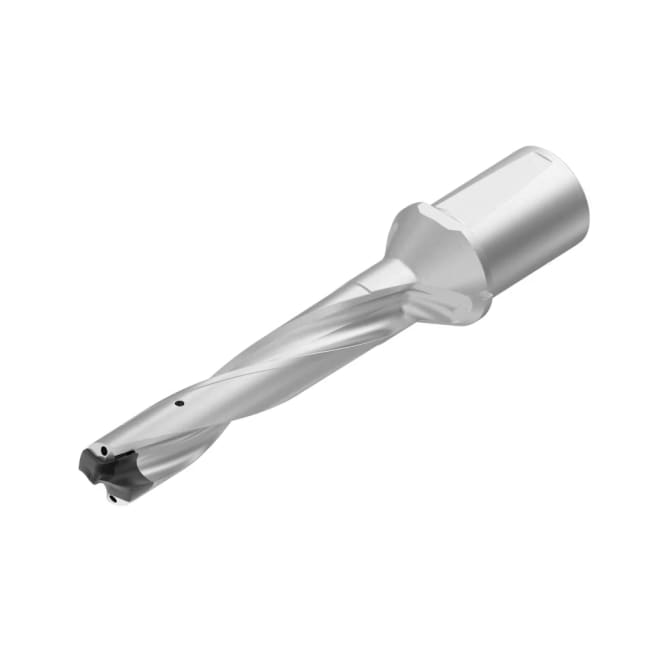

"GRUNDKOERPER, 5XD, DIAMETER=32.1MM"
| [D] Shank Diameter | 40.0000 |
| Kennametal | |
|---|---|
| ISO Catalog Number | KSEM321R5WD40M |
| [D1MAX] Drill Dia Max Metric | 33 |
| [L1] Gage Length | 218 |
| [L4/D1] Length/Diameter Ratio | 5 |
| [SSC] Insert/Blade Seat Size | 9 |
| [L] Overall Length | 286 |
| [D] Adapter Shank Bore Dia | 40 |
| [D1] Drill Diameter Min | 32.01 |
| [L3] Flute Length | 208 |
| [L4] Max. Drill Depth | 160 |
| [L5] Drill Point Length | 5.6 |
| [LS] Shank Length | 68 |
| Spesifikasjoner | |
|---|---|
| Vekt | 1.504 kg |
| Type | KROPP |
| Bordiameter | 32.01 mm |
| Bortype | KSEM |
| Borelengde | 5XD |
