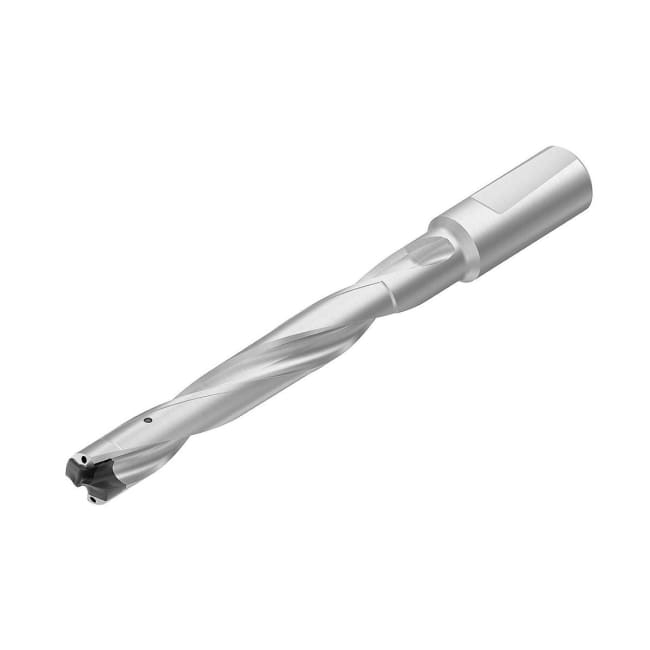

KSEM135R7WN16M
Produktnummer: 1797159
Salgsenhet: STK
inkl. mva.
KSEM135R7WN16M
KSEM-GRUNDKOERPER 7XD D=13.50MM
| [D] Shank Diameter | 16.0000 |
| Kennametal | |
|---|---|
| ISO Catalog Number | KSEM135R7WN16M |
| [D1MAX] Drill Dia Max Metric | 13.5 |
| [L4/D1] Length/Diameter Ratio | 7 |
| [SSC] Insert/Blade Seat Size | C |
| [L] Overall Length | 167 |
| [D] Adapter Shank Bore Dia | 16 |
| [D1] Drill Diameter Min | 13.5 |
| [L3] Flute Length | 115 |
| [L4] Max. Drill Depth | 98 |
| [L5] Drill Point Length | 2.14 |
| [LS] Shank Length | 48 |
| Spesifikasjoner | |
|---|---|
| Vekt | 0.1505 kg |
| Type | KROPP |
| Bordiameter | 13.5 mm |
| Bortype | KSEM |
| Borelengde | 7XD |
