KOR5RA0800R024HBR050CM KC643M
Produktnummer: 6763986
Lagerbeholdning:
Salgsenhet: STK
inkl. mva.
KOR5RA0800R024HBR050CMKC643M

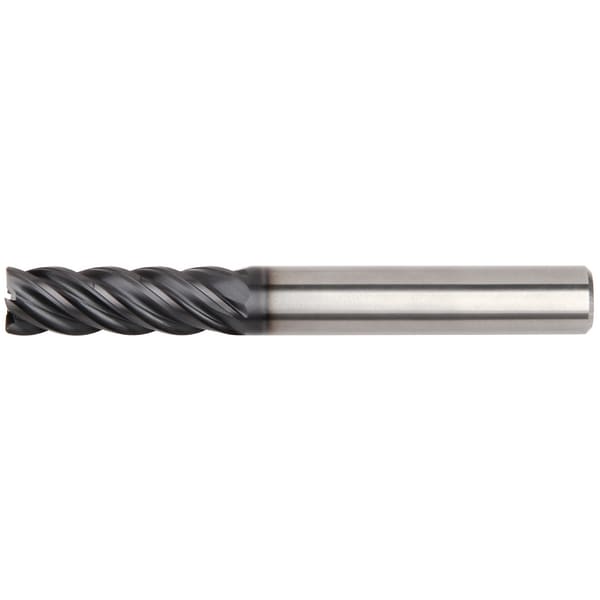

Kennametal Kor 5 DS. 5 flutes - 3xD - Weldon shank.
• Helix angles tailored to target material to minimize vibration and optimize tool life.
• Dynamic rougher for steel and stainless steel.
• With chip deformers for near-perfect chip management at high surface quality.
• Safe-Lock™ and Weldon® shanks for pullout protection.
• Helix angles tailored to target material to minimize vibration and optimize tool life.
• Dynamic rougher for steel and stainless steel.
• With chip deformers for near-perfect chip management at high surface quality.
• Safe-Lock™ and Weldon® shanks for pullout protection.
| Spesifikasjoner | |
|---|---|
| Vekt | 0.0407 kg |
| Volum | 0.02 liter |
| Form | RADIE |
| Tanning | 5 |
| Type | DYNAMISK |
| Lengde X dia | 3XD |
| Serie | KOR5 DS |
| Kvalitet | KC643M |
| Diameter | 8 mm |
| Neseradius | 0.5 mm |
| Lengde | 24 mm |
| Kennametal | |
|---|---|
| Kvalitet | KC643M |
| Hjørnetype | Radius |
| D1 | 8.0000 |
| Pakke Størrelse | 1 |
| Beskrivelse | ENDMILL KOR5 8x8x24x67 R0,5 |
| [D] Shank Diameter | 8.0000 |
| LS | 35.0000 |
| [L] Total Lengde | 67.0000 |
| Skaft Type | Weldon |
| Skaft Type | WELDON |
| [Re] Radius | 0.5000 |
| Ap1 Maks | 24.0000 |
| Platform | KOR5 |
| Material Hoved Grupper | Steel,Stainless Steel,Cast Iron,High-Temp Alloys,Hardened Materials |
| [D1] Diameter | 8.0000 |
| Varekode | KOR5RA0800R024HBR050CM |
| L2 | 67.0000,35.0000 |
