F4AS1600AWX38R100KCPM15
Produktnummer: 4046423
Salgsenhet: STK
inkl. mva.
F4AS1600AWX38R100KCPM15

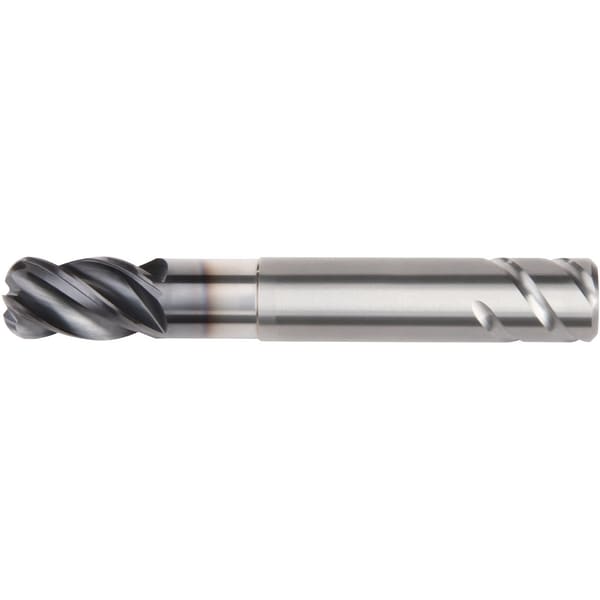

Harvi I. UBDE. F4AS..WM-WX-WL. Unequal Flute Spacing. With Neck.
• Kennametal standard dimensions.
• Centre cutting.
• Unequal flute spacing minimises chatter for smoother machining.
• Single tool for both roughing and finishing operations requiring fewer setups.
• Kennametal standard dimensions.
• Centre cutting.
• Unequal flute spacing minimises chatter for smoother machining.
• Single tool for both roughing and finishing operations requiring fewer setups.
| Spesifikasjoner | |
|---|---|
| Vekt | 0.29 kg |
| Volum | 0.05 liter |
| Form | RADIE |
| Tanning | 4 |
| Type | NEDSLIPT FRES |
| Lengde X dia | 3XD |
| Serie | HARVI I |
| Kvalitet | KCPM15 |
| Diameter | 16 mm |
| Neseradius | 1 mm |
| Arbeidsmateriale | Stål, Rustfritt stål, Støpejern, Herdet stål |
| Lengde | 24 mm |
| [D] Shank Diameter | 16.0000 |
| Kennametal | |
|---|---|
| ISO Catalog Number | F4AS1600AWX38R100 |
| Grade | KCPM15 |
| [D3] Neck Diameter | 15.04 |
| Number of Flutes | 4 |
| Adapter Style Machine Side | Straight-Cylindrical |
| [Rε] Corner Radius | 1 |
| [L3] Maximum Depth End Mill | 48 |
| [L] Overall Length | 100 |
| [D1] Effective Cutting Dia | 16 |
| [D] Adapter Shank Bore Dia | 16 |
| [AP1MAX] 1st Max Cut Depth | 24 |
