DFR210R3WD32M
Produktnummer: 1810371
Lagerbeholdning:
Salgsenhet: STK
inkl. mva.

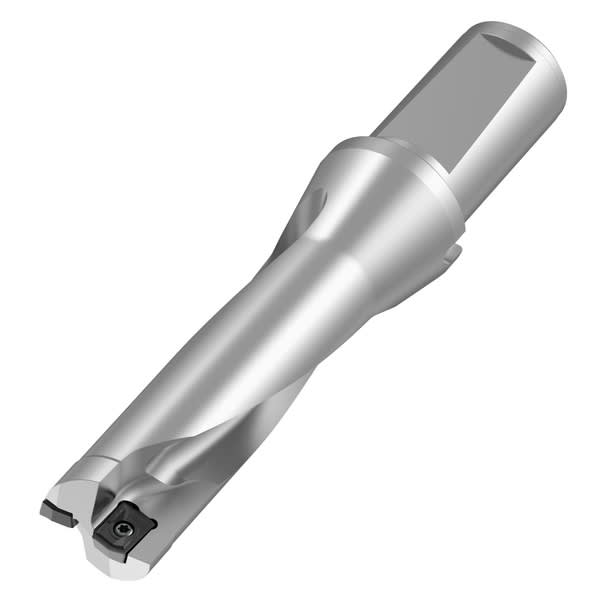

DFR210R3WD32M
Drill Fix DFR Bodies. Whistle Notch Shank. 3xD.
• Drill Fix DFR with rectangular-shaped inserts offer highest stability and feed rates at smaller sizes.
• X-offset design to adjust diameter size on turning machines and optimize tolerances on machining centers.
• Drill shipped with insert screws and Torx wrench.
Se vedlagt fil for spesifikasjoner eller klikk her for å lese mer på leverandørens side >>
| Spesifikasjoner | |
|---|---|
| Vekt | 0.546 kg |
| Volum | 0.1 liter |
| Type | KROPP |
| Bordiameter | 21 mm |
| Bortype | DFR |
| Borelengde | 3XD |
| Kennametal | |
|---|---|
| D5 | 41.9000 |
| Pakke Størrelse | 1 |
| Beskrivelse | DRILL BODY, DIAMETER=21.0-22.0 3XD |
| [D] Shank Diameter | 32.0000 |
| [L3] Brukende lengde | 78.0000 |
| LS | 58.000,58.0000 |
| LATTH | 94.2450 |
| D1 Maks | 22.0000 |
| [L] Total Lengde | 153.5520 |
| Skaft Type | Whistle Drive 2 |
| Platform | Drill Fix |
| [D1] Diameter | 21.0000 |
| L4 Maks | 63.0000 |
| Varekode | DFR210R3WD32M |
| L2 | 58.0000 |
| L1 | 95.5520 |
| Maks omd. | B-Parallelogram 82 |
| L5 | 0.7550 |
