ABDE1200A3ARA K600
Produktnummer: 3637418
Lagerbeholdning:
Salgsenhet: STK
inkl. mva.
ABDE1200A3ARAK600

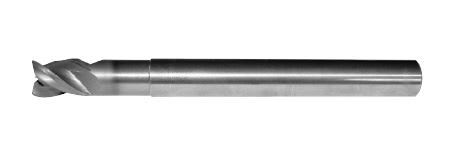

Kennametal MaxiMet ABDE Wiper facet. Extended neck.
• Kennametal standard dimensions.
• Centre cutting.
• Effective in thin wall applications.
• Wiper facet, special end gash, and flute geometry provide better surface finishes.
• Unique geometry delivers maximum metal removal rates.
• Kennametal standard dimensions.
• Centre cutting.
• Effective in thin wall applications.
• Wiper facet, special end gash, and flute geometry provide better surface finishes.
• Unique geometry delivers maximum metal removal rates.
| Spesifikasjoner | |
|---|---|
| Vekt | 0.113 kg |
| Volum | 0.05 liter |
| Form | MED RADIE |
| Tanning | 3 |
| Type | ALU FRES |
| Lengde X dia | 2xD |
| Kvalitet | K600 |
| Diameter | 12 mm |
| Neseradius | 0.2 mm |
| Lengde | 18 mm |
| Kennametal | |
|---|---|
| Kvalitet | K600 |
| Hjørnetype | Radius |
| D1 | 12.0000 |
| Pakke Størrelse | 1 |
| Beskrivelse | END MILL MaxiMet R=0.2 D=12 Z=3 38D |
| [D] Shank Diameter | 12.0000 |
| [L3] Brukende lengde | 36.0000 |
| LS | 64.0000 |
| [L] Total Lengde | 100.0000 |
| Skaft Type | Straight-Cylindrical |
| Skaft Type | PLAIN |
| [Re] Radius | 0.2000 |
| Ap1 Maks | 18.0000 |
| Platform | MaxiMet |
| Material Hoved Grupper | Non-Ferrous Materials |
| [D1] Diameter | 12.0000 |
| [D3] Nakke Diameter | okt.00 |
| Varekode | ABDE1200A3ARA |
| L2 | 100.0000,45.0100 |
