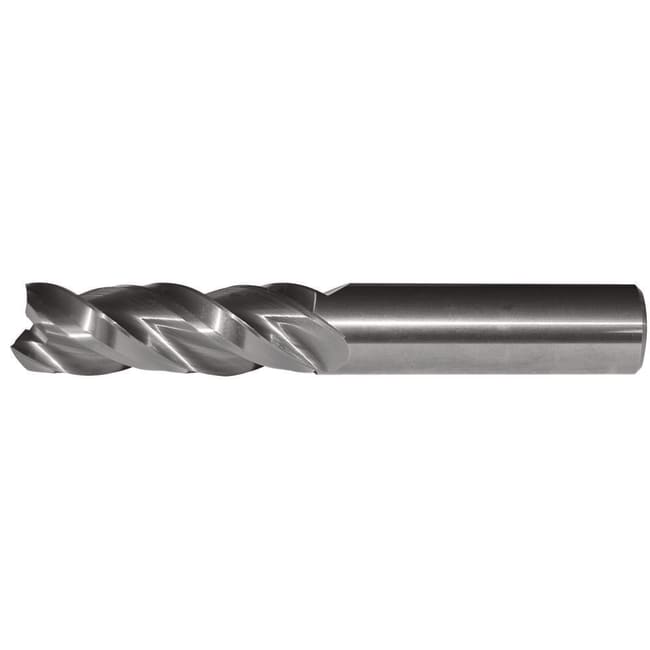

ABDE0800A3AS K600
Produktnummer: 3637463
Lagerbeholdning:
Salgsenhet: STK
inkl. mva.
ABDE0800A3ASK600
Kennametal MaxiMet ABDE Wiper facet.
• Kennametal standard dimensions.
• Centre cutting.
• Effective in thin wall applications.
• Wiper facet, special end gash, and flute geometry provide better surface finishes.
• Unique geometry delivers maximum metal removal rates.
• Kennametal standard dimensions.
• Centre cutting.
• Effective in thin wall applications.
• Wiper facet, special end gash, and flute geometry provide better surface finishes.
• Unique geometry delivers maximum metal removal rates.
| Spesifikasjoner | |
|---|---|
| Vekt | 0.04 kg |
| Volum | 0.02 liter |
| Form | UTEN RADIE |
| Tanning | 3 |
| Type | ALU FRES |
| Lengde X dia | 3xD |
| Kvalitet | K600 |
| Diameter | 8 mm |
| Lengde | 20 mm |
| Kennametal | |
|---|---|
| Kvalitet | K600 |
| Hjørnetype | Square End |
| D1 | 8.0000 |
| Pakke Størrelse | 1 |
| Beskrivelse | END MILL MaxiMet F.ALU R=0 D=8 Z=3 38DEG |
| [D] Shank Diameter | 8.0000 |
| [L3] Brukende lengde | 20.0000 |
| LS | 38.0000 |
| [L] Total Lengde | 63.0000 |
| Skaft Type | Straight-Cylindrical |
| Skaft Type | PLAIN |
| Ap1 Maks | 20.0000 |
| Platform | MaxiMet |
| Material Hoved Grupper | Non-Ferrous Materials |
| [D1] Diameter | 8.0000 |
| Varekode | ABDE0800A3AS |
| L2 | 63.0000,36.0000 |
