ABDE0800A3ARCK600
Produktnummer: 3637414
Salgsenhet: STK
inkl. mva.
ABDE0800A3ARCK600

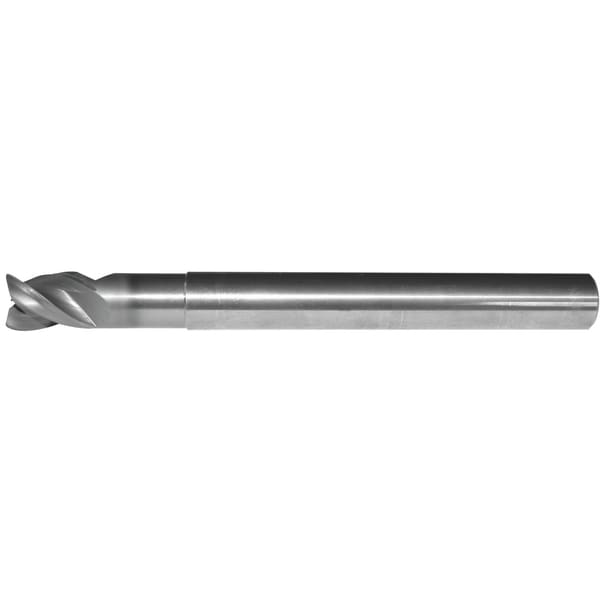

Kennametal MaxiMet ABDE Wiper facet. Extended neck.
• Kennametal standard dimensions.
• Centre cutting.
• Effective in thin wall applications.
• Wiper facet, special end gash, and flute geometry provide better surface finishes.
• Unique geometry delivers maximum metal removal rates.
• Kennametal standard dimensions.
• Centre cutting.
• Effective in thin wall applications.
• Wiper facet, special end gash, and flute geometry provide better surface finishes.
• Unique geometry delivers maximum metal removal rates.
| [D] Shank Diameter | 8.0000 |
| Kennametal | |
|---|---|
| ISO Catalog Number | ABDE0800A3ARC |
| Grade | K600 |
| [D3] Neck Diameter | 7.2 |
| Number of Flutes | 3 |
| Adapter Style Machine Side | Straight-Cylindrical |
| [Rε] Corner Radius | 1 |
| [L3] Maximum Depth End Mill | 24 |
| [L] Overall Length | 76 |
| [D1] Effective Cutting Dia | 8 |
| [D] Adapter Shank Bore Dia | 8 |
| [AP1MAX] 1st Max Cut Depth | 12 |
| Spesifikasjoner | |
|---|---|
| Vekt | 0.052 kg |
| Form | MED RADIE |
| Tanning | 3 |
| Type | ALU FRES |
| Lengde X dia | 2xD |
| Serie | MAXIMET |
| Kvalitet | K600 |
| Diameter | 8 mm |
| Neseradius | 1 mm |
| Lengde | 12 mm |
