ABDE0600A3ARB K600
Produktnummer: 3637390
Lagerbeholdning:
Salgsenhet: STK
inkl. mva.
ABDE0600A3ARBK600

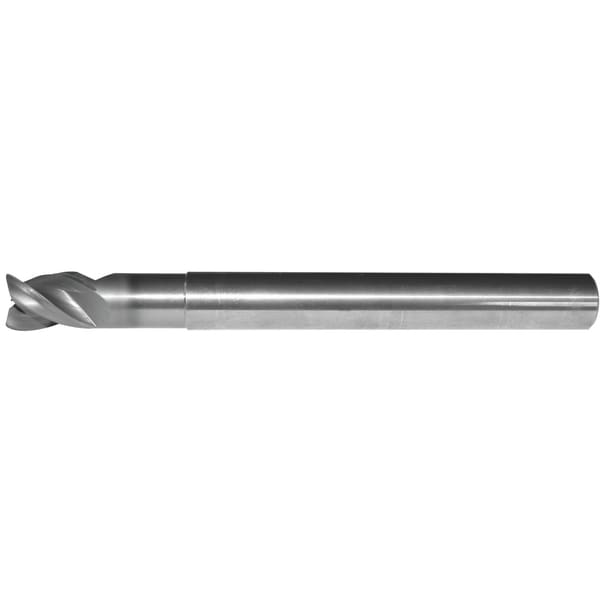

Kennametal MaxiMet ABDE Wiper facet. Extended neck.
• Kennametal standard dimensions.
• Centre cutting.
• Effective in thin wall applications.
• Wiper facet, special end gash, and flute geometry provide better surface finishes.
• Unique geometry delivers maximum metal removal rates.
• Kennametal standard dimensions.
• Centre cutting.
• Effective in thin wall applications.
• Wiper facet, special end gash, and flute geometry provide better surface finishes.
• Unique geometry delivers maximum metal removal rates.
| Spesifikasjoner | |
|---|---|
| Vekt | 0.026 kg |
| Volum | 0.02 liter |
| Form | MED RADIE |
| Tanning | 3 |
| Type | ALU FRES |
| Lengde X dia | 2xD |
| Kvalitet | K600 |
| Diameter | 6 mm |
| Neseradius | 0.5 mm |
| Lengde | 9 mm |
| Kennametal | |
|---|---|
| Kvalitet | K600 |
| Hjørnetype | Radius |
| D1 | 6.0000 |
| Pakke Størrelse | 1 |
| Beskrivelse | END MILL MaxiMet R=0.5 D=6 Z=3 38DE |
| [D] Shank Diameter | 6.0000 |
| [L3] Brukende lengde | 18.0000 |
| LS | 45.0000 |
| [L] Total Lengde | 63.0000 |
| Skaft Type | Straight-Cylindrical |
| Skaft Type | PLAIN |
| [Re] Radius | 0.5000 |
| Ap1 Maks | 9.0000 |
| Platform | MaxiMet |
| Material Hoved Grupper | Non-Ferrous Materials |
| [D1] Diameter | 6.0000 |
| [D3] Nakke Diameter | mai.00 |
| Varekode | ABDE0600A3ARB |
| L2 | 63.0000,36.0000 |
