7792VXD09-A040Z3R
Produktnummer: 5656727
Lagerbeholdning:
Salgsenhet: STK
inkl. mva.
7792VXD09-A040Z3R

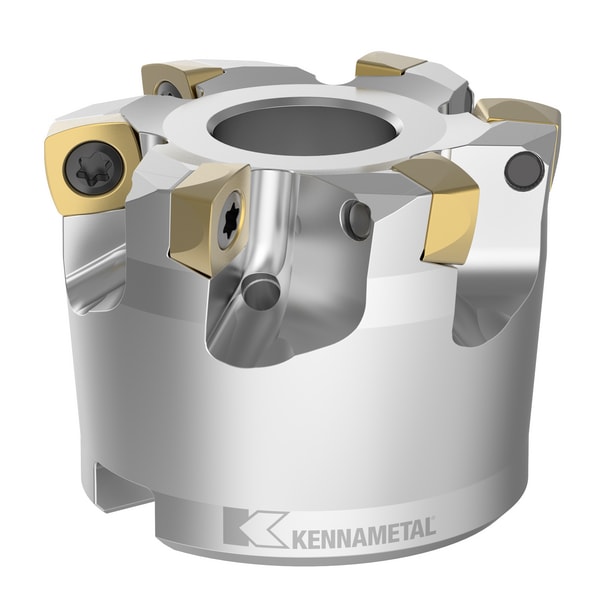

Kennametal 7792VXD09 high-feed milling cutters. Shell mill.
• Superior surface generation with integrated wiper facet.
• Maximum material removal rates.
• Suitable to machine HTA and titanium.
• Ultra-fine pitch cutters available to increase material removal rates, especially on high-temp alloys.
• Positive design to support lower cutting forces and long overhang usage.
• Ramping and plunge milling capabilities.
Se vedlagt katalog eller klikk her for lese mer på leverandørens side >>
| Spesifikasjoner | |
|---|---|
| Vekt | 0.25 kg |
| Volum | 0.05 liter |
| Tanning | 3 |
| Serie | 7792 STELLRAM |
| Diameter | 40 mm |
| Størrelse | 9 |
| Tange/hull | 16 |
| Kennametal | |
|---|---|
| Hjørnetype | Radius |
| D6 | 36.3600 |
| D1 | 26.7500 |
| Pakke Størrelse | 1 |
| Beskrivelse | 7792VXD IC09 METRIC D40z3 SHELL MILL |
| [D] Shank Diameter | 16.0000 |
| D1 Maks | 40.0000 |
| [L] Total Lengde | 32.0000 |
| Skaft Type | A-Socket Head Cap Screw |
| Ap1 Maks | jan.00 |
| Platform | Stellram |
| [D1] Diameter | 26.7500 |
| Varekode | 7792VXD09-A040Z3R |
| L2 | 32.0000 |
